(but where is v1.0 ?…)
I’ve been working for several months by now on a new Jaluino board, Jaluino Bee. I’ve designed a first PCB (v1.0), tested it with more or less success and now have ordered (and received) a second batch of PCBs (v2.0). From all i could test it seems to work “out of the box”, so now is the time to expose this…

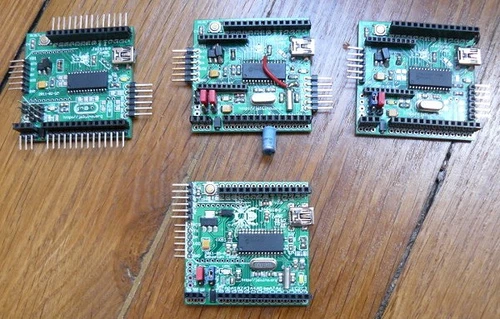

Upper three board: Bee v1.0 with more or less “green wire” fixes. From left to right: Jaluino Bee[z] powered by PIC18F25K22, Jaluino Bee powered by PIC18F27J53 (lots of fixes…) and Jaluino Bee[p] powered by PIC18F2550 (because I had some in my box…). On the bottom, Jaluino Bee v2.0 powered by PIC18F27J53 (no more “green wire” fixes), sweet…
